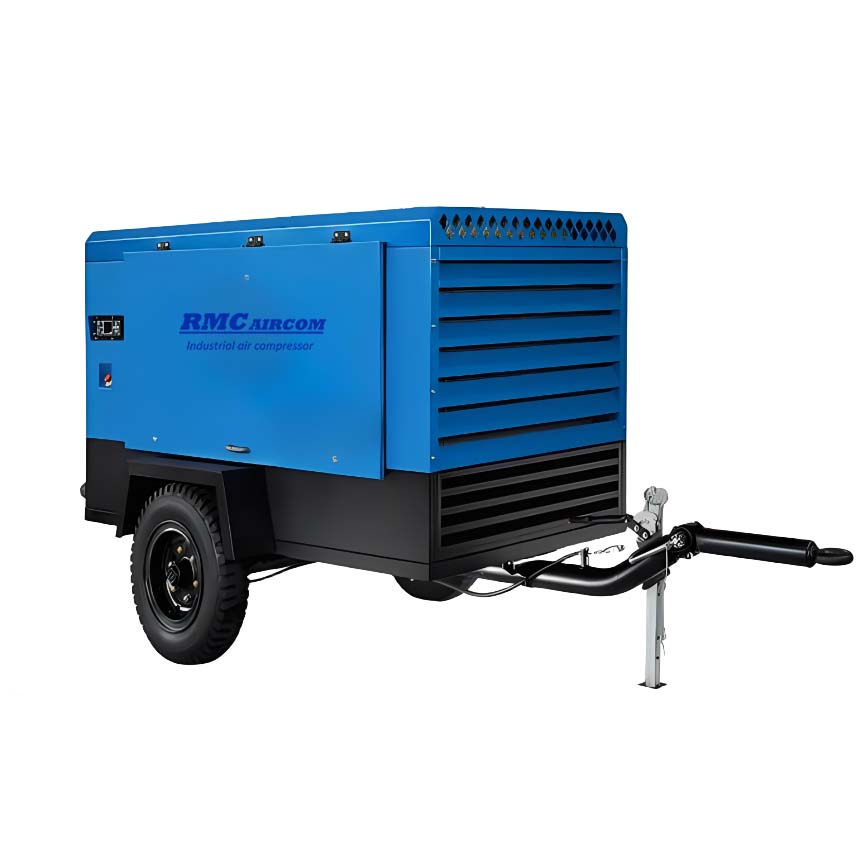

portable diesel engine screw air compressor

4.5-8CY portable diesel engine screw air compressor

Part name			RMC4.5-8CY
Air compressor	Type		Portable diesel screw compressor
	Air flow capacity	m³/min	5
	Discharge pressure	bar	8
	Driven		By diesel engine
	Oil separator tank	L	50
	Lubricant volume	L	32
	Intake air filter		Fleetguard
	Screw airend		BAOSI
Diesel engine	Manufacturer		XI Chai
	Engine number		4DW91-50GBG3U-YM10
	Rated/Full load/Unload	rpm	2650/2300/1450
	Power	KW	36.8
	Cylinders /Bore /Stroke		4X90X100
	Engine displacement	L	2.54
	Coolant capacity	L	12
	Engine oil	L	7
	Fuel tank volume	L	75
	Engie oil filter		Fleetguard
Coupling			Marine standard
Dimension Weight	L(with tire stand)	mm	1900(2540)
	W	mm	1460
	H	mm	1550
	Net weight	Kg	1000
	Discharge connection		G1 "x1&G3/4"x2
