Diesel mobile engine screw air compressor

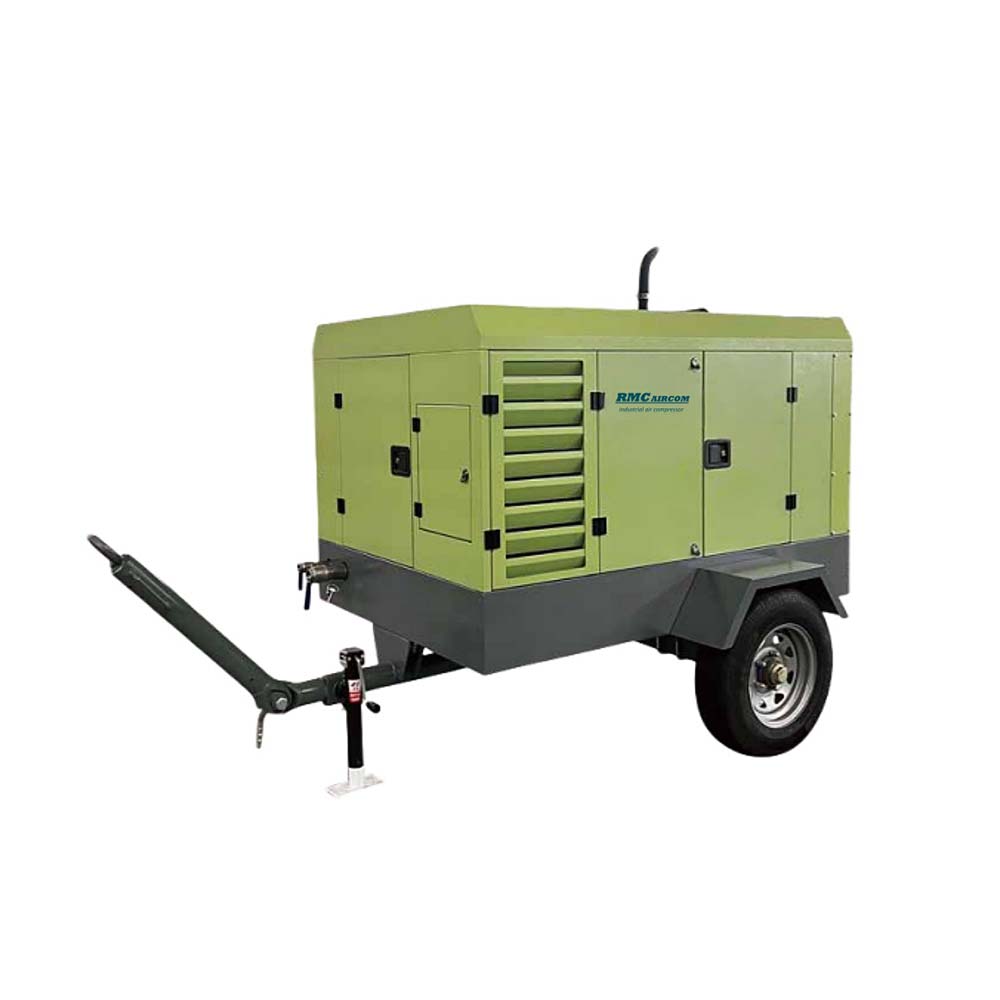

10-10CY Diesel mobile engine screw air compressor

Part name			RMC10-10CY
Air compressor	Type		Portable diesel screw compressor
	Air flow capacity	m³/min	10
	Discharge pressure	bar	10
	Driven		Portable diesel screw compressor
	Oil separator tank	L	100
	Lubricant volume	L	48
	Intake air filter		Portable diesel screw compressor
	Screw airend		BAOSI
Diesel engine	Manufacturer		YUCHAI III
	Engine number		YC4DK120-T301
	Rated/Full load/Unload	rpm	2200/1950/1450
	Power	KW	88
	Cylinders /Bore /Stroke		4×108×132
	Engine displacement	L	4.837
	Coolant capacity	L	20
	Engine oil	L	11
	Fuel tank volume	L	90
	Engie oil filter		Fleetguard
Coupling			Marine standard
Dimension Weight	L(without tire stand)	mm	3116(1950)
	W	mm	1806
	H	mm	1887
	Net weight	Kg	1750
	Discharge connection		G1"/G11/2"
